vScrawl Integration Guide

This guide explains how to Integrate vScrawl into your website or application, so you can prepare and sign documents without leaving your app. It covers business application registration, credential generation, access token creation, and iFrame implementation.

Once a document workflow is created, the signing/preparation experience runs entirely inside your own interface.

Register a Business Application

To use the vScrawl Integration, you must first register a Business Application in vScrawl.

  1. Log in to your vScrawl account.
  2. Navigate to Organization from the left panel, then click on Business App.
  3. Click Add.
  4. Fill in the required fields (App Name, description, etc.).
  5. Click Add again to save.

vScrawl Signup Once created, your application will appear in the App List.

Generate Client Secret

After registering the application, generate security credentials.

  1. Locate your application in the App List.
  2. Click the three dots (options menu).
  3. Select Generate Secret.

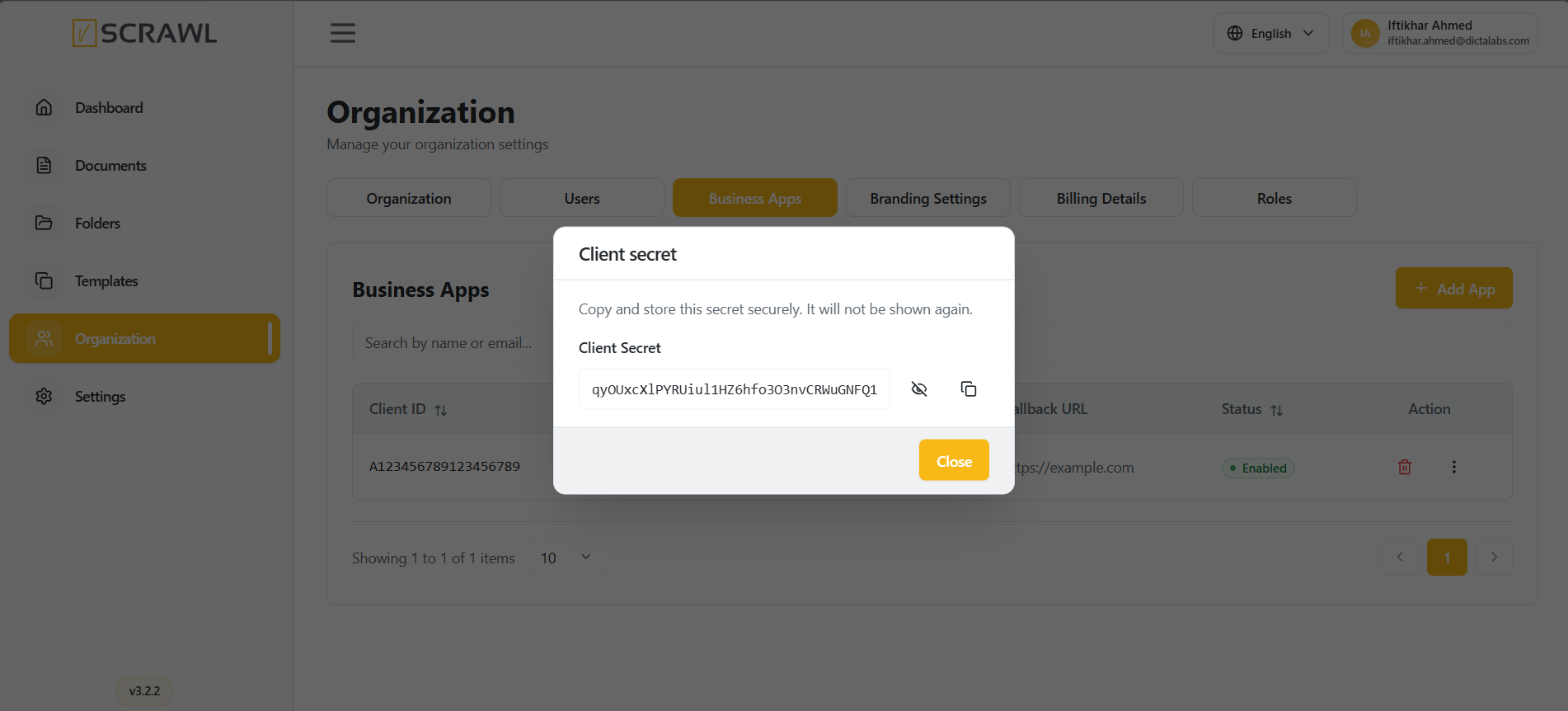

Copy the Client Secret immediately and store it securely.

vScrawl Signup Important: The Client Secret is shown only once. If lost, you must regenerate it.

Generate an Access Token

An Access Token is required to authenticate and load the vScrawl .

API Details

  • Method: POST
  • Endpoint:
    https://api.yourdomain.com/auth/v1/signin

Request Body (JSON)

{
  "grant_type": "CLIENT_CREDENTIALS",
  "clientId": "{{app_name}}",
  "clientSecret": "{{client_secret}}",
  "email": "{{user_email}}"
}

Response

On success, the API returns an access token. Save this token and use it in the URL.

Integrate vScrawl Using an iFrame

Once you have the access token and workflow ID, Integrate the vScrawl editor in your application using an iFrame.

Sample HTML

<!DOCTYPE html>

<html>
  <body>
    <h1>My vScrawl Integration </h1>
    <iframe
      src="https://app.yourdomain.com/documents/prepare?wId={{WORKFLOW_ID}}&clientToken={{ACCESS_TOKEN}}"
      width="100%"
      height="800px"
      frameborder="0"
      allow="clipboard-read; clipboard-write; fullscreen"
      title="vScrawl Document Editor">
    </iframe>
  </body>
</html>

Parameters

  • WORKFLOW_ID: The workflow ID for the document signing process.
  • ACCESS_TOKEN: The access token generated from the signing API.

Best Security Practices

  • Never expose Client Secret in frontend code.
  • Always generate the Access Token from a secure backend service.
  • Rotate secrets periodically.
  • Use HTTPS for all API and iframe integrations.

For any issues or questions, contact the vScrawl support team.
